₨6,900.00

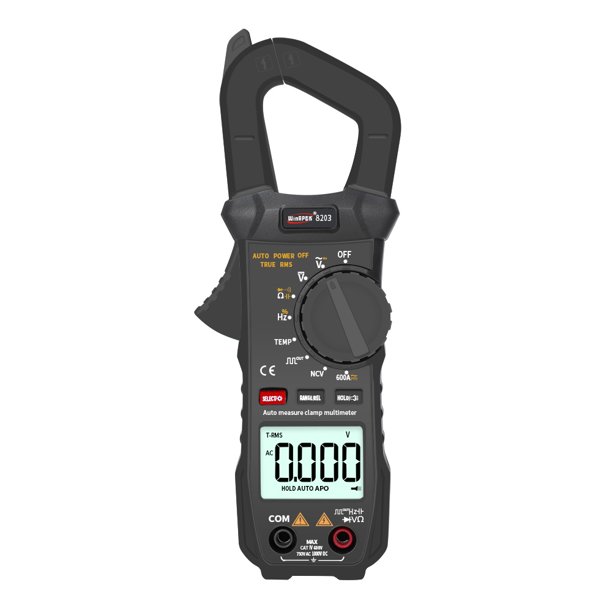

This is a pocket-sized 3 56-digit automatic digital meter. It has stable performance, high accuracy, high reliability, clear reading and overload protection.
Features:
and portable, easy to use and operate.
Accurate and real-time measurement of RMS values of various voltage waveforms without distortion.
Effectively eliminates the effects of resistance distributed capacitance or interference signals.
The clamp unit measures vertically through the center of the hole.
Driven by AAA 1.5V battery (not included), the instrument adopts large LCD display screen and adopts boost power source. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.
The instrument’s backlight can be turned on and off automatically after 15 seconds.
It is a perfect tool for laboratories, factories, enthusiasts and families.
Function: AC-DC voltage, AC current (AC current 8202AC-DC current 8203), resistance, capacitance, frequency, diode, buzzer, true RMS, NCV, , TEMP, flashlight.
Specifications:
Brand: WINAPEX
Model: 8203
Color: Black
Jaw:40mm
Maximum display:5999
DC Voltage: 6V/60V/600V/1000V
AC Voltage: 6V/60V/600V/750V
AC Current: 60A/600A
DC Current: 60A/600A
Resistance(ohm):600Ω/6KΩ/60Ω/600KΩ/6MΩ/40MΩ
Capacitance:60nF/600nF/6uF/60uF/600uF/6mF/30mF
Frequency:10Hz/100Hz/1kHz/10Hz/100Hz/1MHz/10MHz
Temperature:(-20-1000 )℃/(0-1832 )℉
DC voltage DCV :yes
AC voltage ACV :yes
AC current ACA :yes
DC current DCA :yes
T-RMS: yes
NCV: yes
Square wave output: yes
On-Off Test :yes
Diode measurement: yes
Buzzer: yes
Zero line / Fire line test :yes
Data hold: yes
Material: Plastic, Electronic Parts
Battery: 2 x 1.5V AAA Batteries (not included)
Product size:176x67x33mm/6.86×2.61×1.29in
Product weight:305g/10.68oz
