₨550.00
Material: Aluminum Alloy Material
Color: Silver and White
Size: 80x13x13mm / 3.1 ” x 0.5 ” x 0.5 ” Full
Parameter
Error: 0.05% FS
Output Rated Temperature Drift: ≤ 0.15% FS / 10 & # 8451;
Output sensitivity: 1.0 ± 0.1 mV / V
zero drift: 0.05% FS (1 minute)
zero point temperature drift: 0.2% FS / 10 ° C
zero output: ± 0.1 mV / V
input impedance: 1000 ± 50Ω
impedance Output: 1000 ± 50Ω
overload capacity: 150% FS
recommended excitation voltage:
5-10V operating temperature range: -10 ~ 50 #
red: E
black: E-
white:
Features:
* Has good resistance to side, torsion, anti-skew
* Precise, accurate, Widely used
Application: For high-precision small-scale weighing for micro-automatic testing equipment,
micro-equipment Weighing, pushing and pulling equipment, pull pressure test
package include:

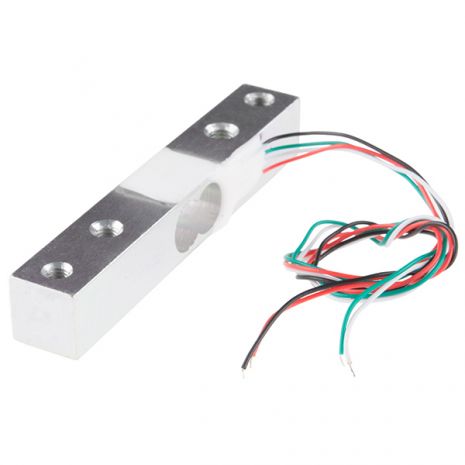

1 x 20 kg Weighing Load Cell
| Weight | 0.1 kg |
|---|
