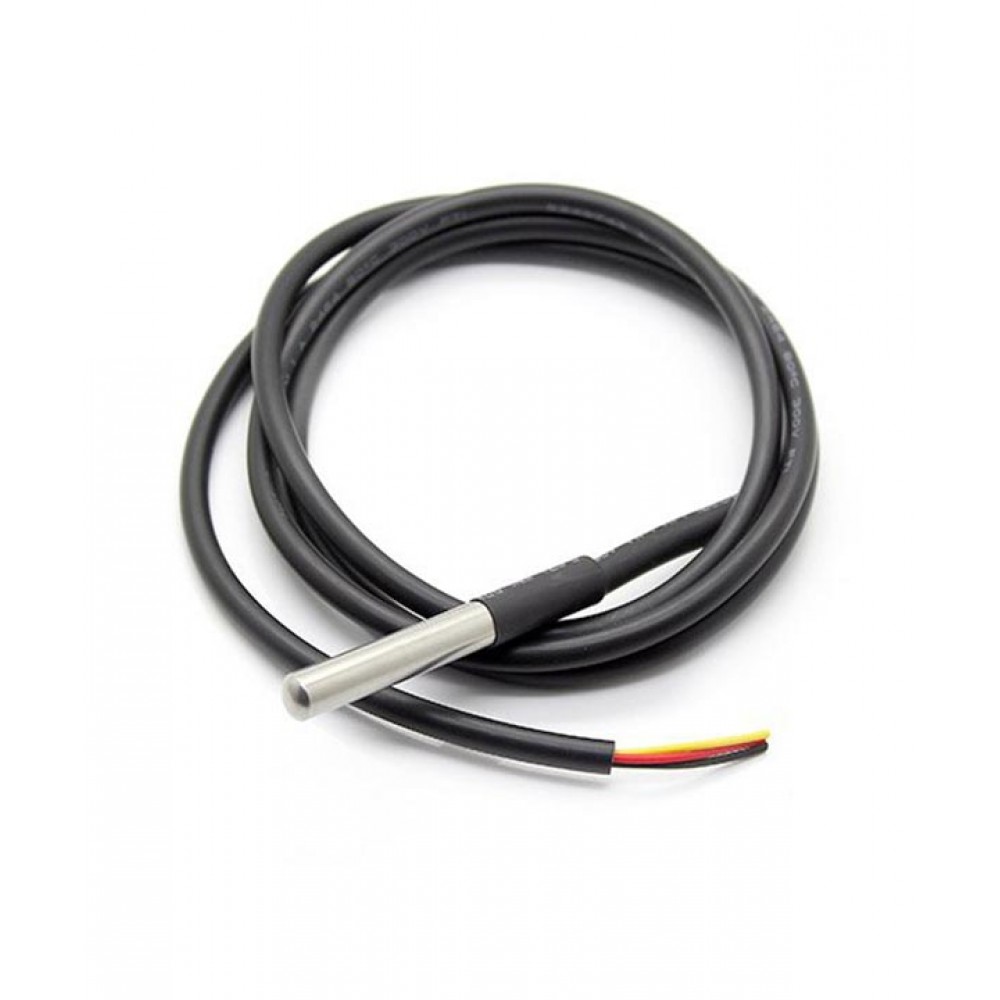

Waterproof DS18B20 Digital Temperature Sensor

Description

Flexibility resistance, Better thermal conductivity.
Length of Cable : 51mm
Size of Stainless steel sheath : 6 x 50mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to 125°C (-67°F to 257°F)
Storage temperature range : -55°C to 125°C (-67°F to 257°F)
Accuracy over the range of -10°C to 85°C : ±0.5°C.

Application :
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.

Note :
If your probe’s wire received is Red, Yellow and Black, connect your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Or if it comes with RED, GREED, YELLOW color, and please connect your probe as :  Output lead : Red (VCC), Green(DATA), Yellow(GND) : )
