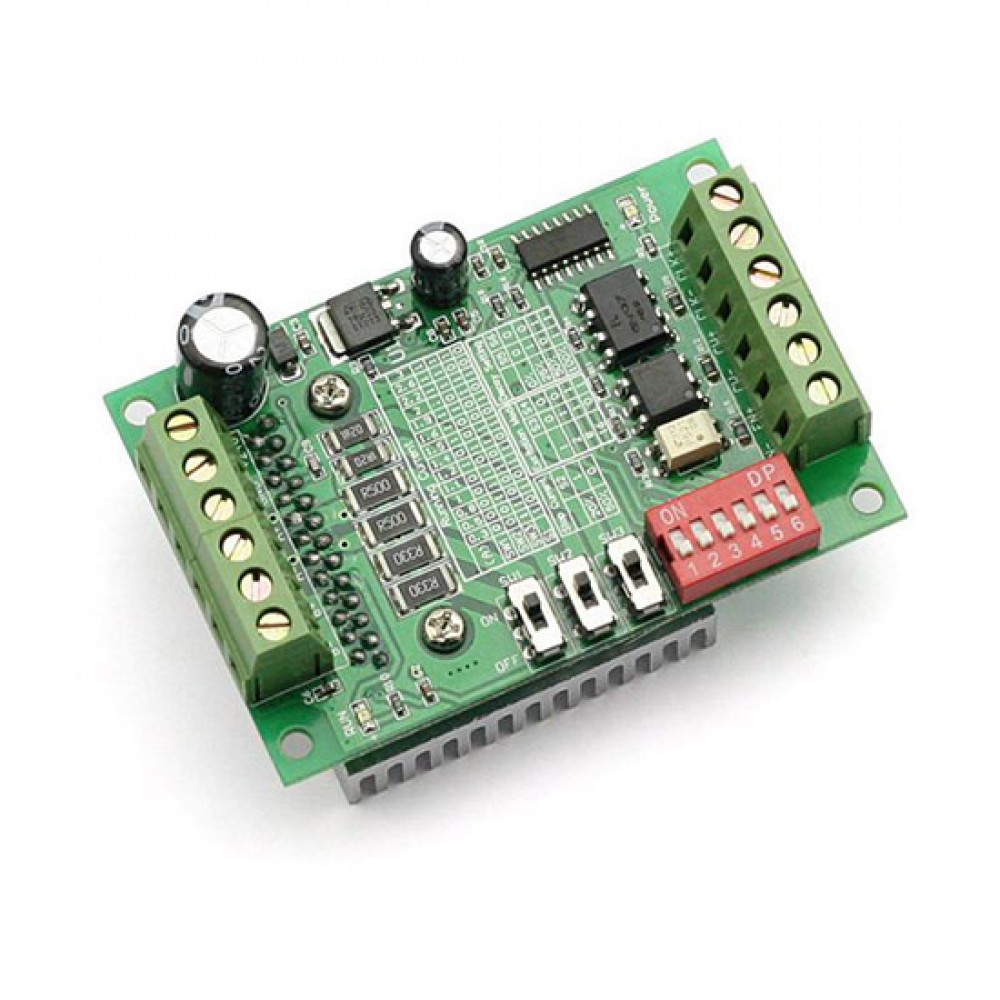

TB6560 Stepper Motor Drivers 3A CNC Controller

SKU: DRI#06

TB6560 Stepper Motor Drivers 3A CNC Controller

800.00

Compare

Description

This product has been fully tested, and has been applied to the engraving machine, patches and other equipment, quality assurance, ease of use. See Datasheet TB6560AHQ

TB6560 STEPPER MOTOR DRIVERS 3A CNC CONTROLLER SINGLE AXIS SPECIFICATIONS:

1) Working voltage DC 10V-35V. DC24V switching power supply is recommended.

2) the use of high-speed optical coupling 6N137, ensure high speed without losing step.

3) Toshiba TB6560AHQ new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit to ensure optimum performance.

4) The maximum rated output: ± 3A, peak 3.5A.

5) for 42, 57 3A stepper within two-phase / four-phase / four-wire / six-wire stepper motor is not suitable for more than 3A stepper motor.

6) automatic semi-flow function.

7) Subdivision: full step, half step, step 1/8, 1/16-step, up to 16 segments.

8) Volume: Width Length 75 * 50 * high 35 (MM)

Weight: 83G
