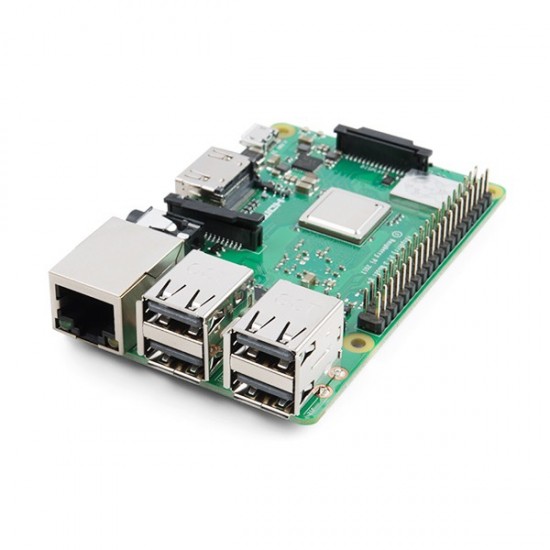

The latest version of the popular Raspberry Pi minicomputer version 3 B . This model distinguishes the more powerful Broadcom BCM2837B0 quad-core 64-bit processor ARM-8 Cortex-A53 1.4 GHz. In addition, the board has dual band 2.4 GHz and 5 GHz WiFi , Bluetooth 4.2 / BLE, Gigabit Ethernet port up to speeds of up to 300 Mb / s and power supply via PoE. The rest of the specification is identical to the 3B model, that is four USB ports, 40 GPIO, micro SD card connectors, DSI and CSI connectors and four mounting holes.
Feature
Description
BCM2837B0 processor
Broad com BCM2837B0 chipset with 64-bit Quad-core ARM-8 core The Cortex-A53 CPU, 1.4 GHz CPU delivers more computing power than previous Raspberry Pi models
WiFi Dual Band
The new built-in WiFi Dual Band 802.11 b / g / n / ac module operates in the 2.4 GHz and 5 GHz range. Which ensures higher transmission speed.
PoE power supply
Possibility to power over the Ethernet network with an additional overlay – the HAT pad will be available soon.
Shape and connectors
The distribution of elements and the outline of the tile remained unchanged. This means that the housing and accessories for the Pi 3 version will be compatible with Raspberry Pi 3 .
