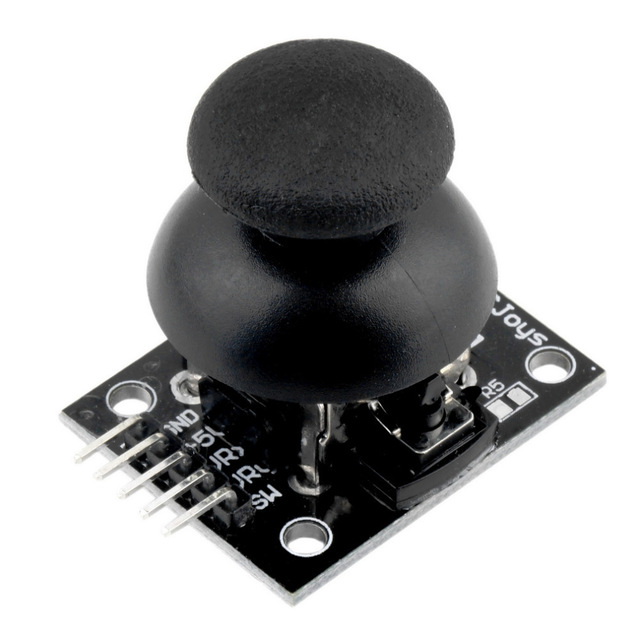

JoyStick Arduino PS2 Breakout Module

Description

Joy Stick Arduino Joystick PS 2 Breakout Module

For PS2 joystick joysticks standard interface module electronic building blocks and 2.54mm pin interface leads.

Phillips is a two-way rocker 10K resistor, with the joystick in a different direction, tap the resistance vary.

This module uses a 5V supply, the original state X, Y readout voltage of 2.5V or so, when pressed with the direction of the arrow, the readout voltage values with increasing, up to 5V; press the arrow in the opposite direction, the readout voltage reduction , a minimum of 0V.

Specification:

Net Weight: 21 g

Color:Black

Size:34.5*26*38 mm

Package includes:

1*Joy Stick Breakout Module
