Description
FEATURES:

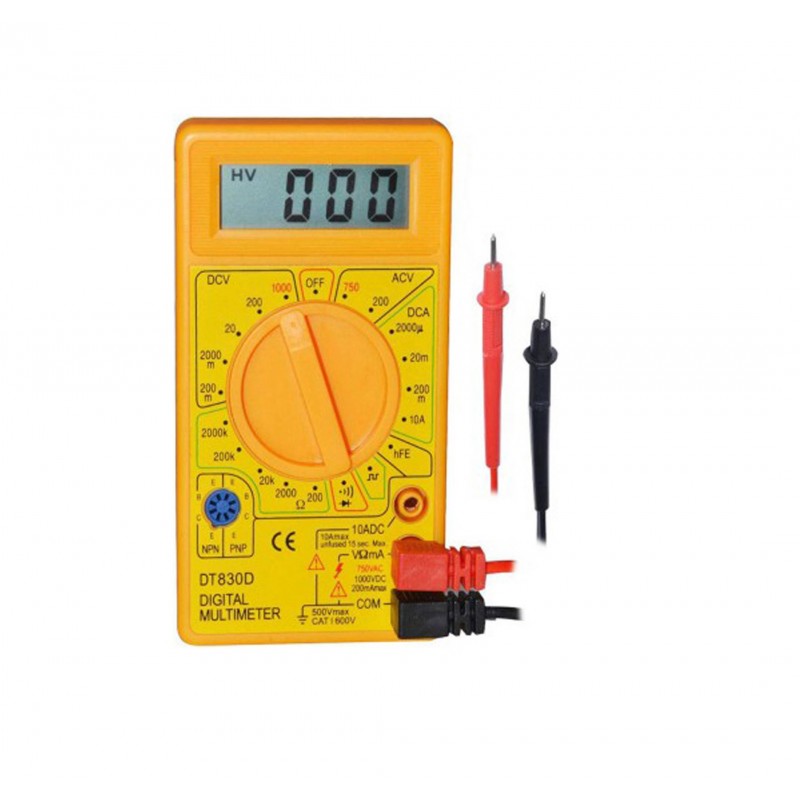

Small multi meter for your day to day needs
If you have basic knowledge about multi meters you can try this small multi meter for basic continuity checks and voltage measurements
When testing DC voltage, AC voltage, DC current, resistance, diode, buzzer and battery, connect the red test lead to V 0 mA jack and black test lead to COM jack
When testing the current more than 200mA, connect the red test lead to OADC jack and black test lead to COM jack
When testing the temperature, connect the temperature probe to V 0 mA jack or COM jack. Please refer to the attached instruction manual for the operating instructions.
SPECIFICATION:
| Functioning |
Range |
Resolution |
Accuracy |
Overload protection |
| DCV |
200mV |
100uV |
(0.5%rdg 2dgts) |
500VDC/350VAC |
| 2000mV |
1 mV |
1000VDC/750VAC |
| 20V |
10mV |
| 200V |
100mV |
| 1000V |
1V |
| ACV |
200V |
100nA |
(1.2%rdg 10dgts) |
750VAC |
| 750V |
1V |
| DCA |
200μA |
100nA |
(1.0%rdg 2dgts) |
500mA/250V Fuse |
| 2000μA |
1μA |
| 20mA |
10μA |
| 200mA |
100μA |
| 10A |
10 mA |
(1.8%rdg 3dgts) |
10A Unfused |
| Resistor
(ohms) |
200Ω |
100mΩ |
(0.8%rdg 2dgts) |
Open voltage circuit approx 2.8V |
| 2000Ω |
1Ω |
| 20kΩ |
10Ω |
| 200kΩ |
100Ω |
| 2000kΩ |
1kΩ |
- To avoid possible damage to the meter or to the equipment under test, follow these guidelines:
- Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance.
- Use the proper terminals, function, and range for your measurements.
- Before measuring current, check the meter’s fuses and turn power off to the circuit before connecting the meter to the circuit.
- Before rotating the range switch to change functions, disconnect test leads from the circuit under test.
- Before attempting to insert transistors for testing, always be sure that the test leads have been disconnected from any measurement circuits.
- Remove test leads from the meter before opening the Meter case.
- To avoid possible damage to the meter or to the equipment under test, follow these guidelines:
- Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance.
- Use the proper terminals, function, and range for your measurements.
- Before measuring current, check the meter’s fuses and turn power off to the circuit before connecting the meter to the circuit.
- Before rotating the range switch to change functions, disconnect test leads from the circuit under test.
- Before attempting to insert transistors for testing, always be sure that the test leads have been disconnected from any measurement circuits.
- Remove test leads from the meter before opening the Meter case
