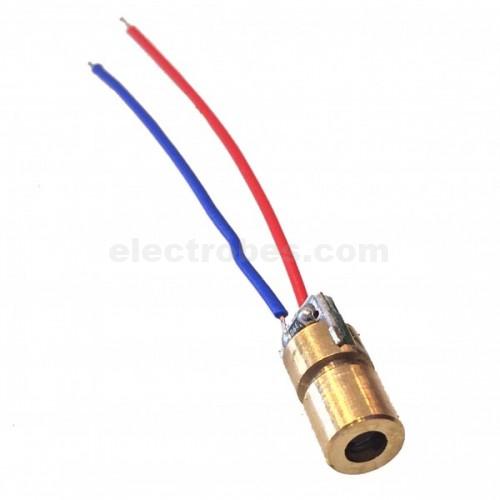

650nm 6mm 3V 5mW Laser Diode Laser Point Diode Module

Description

A Laser Diode is a semiconductor device similar to a light-emitting diode (LED). It uses p-n junction to emit coherent light in which all the waves are at the same frequency and phase.

This coherent light is produced by the laser diode using a process termed as “Light Amplification by Stimulated Emission of Radiation”, which is abbreviated as LASER.

Specification:

• Class IIIa laser diode module
• 650nm (red) dot output
• 6mm diameter (0.235″) x 13.9mm (0.55″) overall length
• Dot spread at 15M distance measures 10-15mm diameter
• power: Supply voltage: 3VDC Operating
• Laser wavelength : 650nm (red)
• Point mode: point facula, continuous output
• Operating temperature: -36 ~ 65 degrees Celsius
• Lifespan: more than 1000 hours
• 5VDC maximum input
• -36 ~ 65°C operating temperature range
• Prewired with 75mm (3″) wire
• 1.4g
