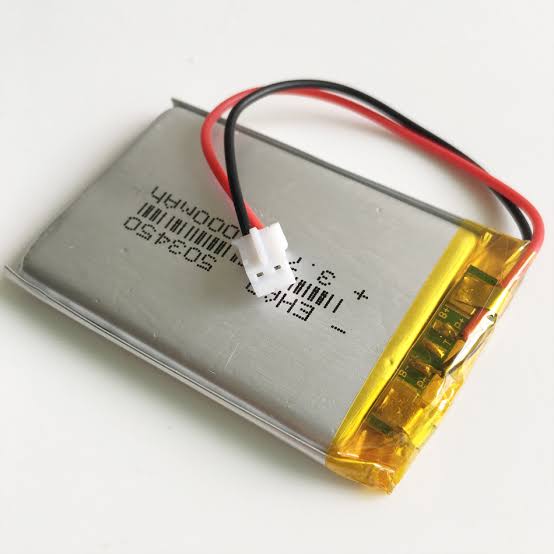

1000mAH 3.7v Lithium-ion battery Li-ion Battery With JST2.0 Connector

SKU: BAT#09

1000mah 3.7v Lithium-ion battery Li-ion Battery With JST2.0 Connector

200.00

Compare

Description

  1. 100% brand new
  2. High quality and high capacity!
  3. Built-in protection circuit PCM for preventing overcharging or over-discharging
  4. Size: 5mm(H)*40mm(W)*65mm(L)
  5. Rating: DC3.7V 1000mAh
  6. Wire Length 6 inch.
  7. Charging current: standard charging, fast charging: 1.0C: 0.5C
  8. Standard charging method: 0.5C CC (constant current) charge to 4.25V,
  9. Then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
  10. The maximum charge current: 1C
  11. Maximum discharge current: 1C
  12. Discharge cut-off voltage: 2.75V
  13. The discharge temperature: -20 degrees C~+60 degrees C
  14. Charging time: 3-7hrs (standard); 3hrs (fast)
  15. Protection function: overcharge, over-discharge, over current, short circuit protection, over-temperature protection
  16. It can be recharged repeatedly
  17. Built-in protection circuit PCM for preventing overcharging or over-discharging.

Package includes:

1 x pcs 3.7v 1000mAh lithium polymer Rechargeable battery with JST PH 2.0mm 2 pin connector.
